Bugattis by type


Basic info send to me by Phillip S.R. Vitou, and completed by me.
Pictures are taken from the Raymond Stofer Archive

Click on a type-number to see an example of the type of Bugatti. The opening picture is of the Figoni-Falaschi bodied T57 for Cholmondly.

TYPE No.BORESTROKEVOLUMECYLS.VALVESCarb/Asp.B.H.P.BodyYEARSREMARKS
T0 ---3---T1897PRINETTI & STUCCHI - 3 wheels & 2 ENGINES
T1 ---4---T1898/99PRINETTI & STUCCHI - 4WD & 4 ENGINES
T290mm120mm3055cc48-OHV1 N/A-T1900/01THE COUNTS GULINELLI
T3114mm130mm5310cc48-OHV1 N/A16T1902/04BARON de DIETRICH

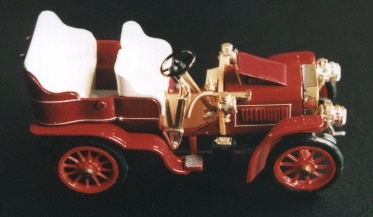

T4130mm140mm7435cc48-OHV1 N/A24T1902/04BARON de DIETRICH
T5160mm160mm12873cc48-OHV1 N/A60R1902/04BARON de DIETRICH
T6136mm150mm8720cc44OI/4SE1 N/A50T1904/07EMIL MATHIS - POSSIBLY FOR HERMES
T6A140mm150mm9240cc44OI/4SE1 N/A60T1904/07EMIL MATHIS - POSSIBLY FOR HERMES
T7160mm160mm12873cc44OI/4SE1 N/A90T1904/07EMIL MATHIS - POSSIBLY FOR HERMES
T8---48-OHC1 N/A-T1907/09GASMOTOREN FABRIK DEUTZ
T9---48-OHC1 N/A-T1907/09GASMOTOREN FABRIK DEUTZ
T1062mm100mm1208cc48-OHC1 N/A-T1909/10FIRST ' BUGATTI ' MOTOR CAR
T11---------NOT KNOWN - POSSIBLY LEFT FOR DEUTZ
T12---------NOT KNOWN - POSSIBLY LEFT FOR TIDAHOLM
T13 65mm100mm1327cc48-OHC1 N/A20T1910/132000mm WHEELBASE 'BRESCIA'
T13A66mm100mm1368cc48-OHC1 N/A~30--
T13B68mm100mm1453cc416-OHC2 N/A~35R1920/25
T14---2x4----1914Twin engined Brescia prototype, two engines mounted one behind the other.
T1565mm100mm1327cc48-OHC1 N/A20T1910/132400mm WHEELBASE 'BRESCIA'

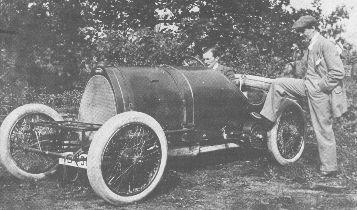

T16 --5200cc824-OHC--R1912/14RENNWAGEN' CHAIN DRIVE RACING CAR.CHASSIS #471 PLUS 3 ADD
T1765mm100mm1327cc48-OHC1 N/A20T1910/132550mm WHEELBASE 'BRESCIA'
T18 --5200cc824-OHC--R1912/14BLACK BESS' CHASSIS #474
T19 ---------PEUGEOT "BEBE"
T20---------PEUGEOT "BEBE"
T21---------
T2269mm100mm1496cc48-OHC1 N/A40T1913/26REPLACEMENT FOR TYPE 13/15
T23 69mm100mm1496cc48-OHC1 N/A40T1913/26REPLACEMENT FOR TYPE 15/17
T24---------
T25---------
T26---------
T2769mm100mm1496cc416-OHC2 N/A50T1913/26NEW ENGINE FOR TYPES 22 & 23
T2869mm100mm2992cc824-OHC2 N/A-X1919EXPERIMENTAL 3 LITRE ENGINE ONLY
T2960mm88mm1991cc824-OHC2 N/A100R1922"LE CIGAR" AERODYNAMIC GP CAR
T30 60mm88mm1991cc824-OHC2 N/A75S/R1922/26
T31---------
T32 60mm88mm1991cc824-OHC2 N/A-R1922/23"TANK"
T3360mm88mm1991cc824-OHC---1923prototype with transmission in rear axle
T34125mm150mm14732cc824-OHC--X1923AERO ENGINE STUDY FOR FRENCH GOVERNMENT
T35 60mm88mm1991cc824-OHC2 N/A100R1924/31
T35A 60mm88mm1991cc824-OHC2 N/A75S/R1926/29"COURSE IMITATION"
T35B60mm100mm2262cc824-OHC1 S/C150R1924/31
T35C60mm88mm1991cc824-OHC1 S/C125--
T35T60mm100mm2262cc824-OHC2 N/A110R1924/31

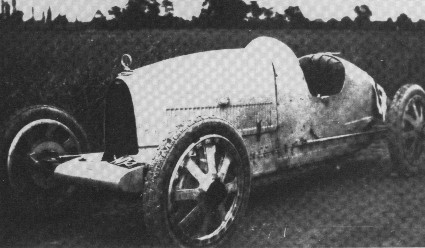

T36 52mm66mm1100cc824-OHC?---Single seater, first one without rear-axle suspension
T37 69mm100mm1496cc412-OHC1 N/A60S1926/30
T37A69mm100mm1496cc412-OHC1 S/C85R1926/30
T38 60mm88mm1991cc824-OHC2 N/A75T1926/27REPLACEMENT FOR TYPE 30
T38A60mm88mm1991cc824-OHC1 S/C95T1927REPLACEMENT FOR TYPE 38
T39 60mm66mm1493cc824-OHC2 N/A100R1924/31
T39A60mm66mm1493cc824-OHC1 S/C130R1926/27

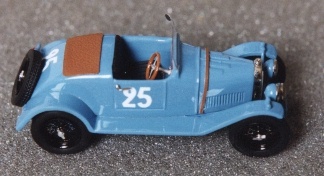

T40 69mm100mm1496cc424-OHC1 N/A60T1926/30REPLACEMENT FOR TYPE 22/23
T40A 72mm100mm1627cc424-OHC1 N/A~70T19302 SPARK PLUGS PER CYLINDER

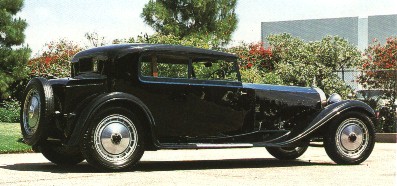

T41 125mm130mm12763cc824-OHC1 N/A275T1929/32"ROYALE"
T42-------X-PROTOTYPE MARINE ENGINE

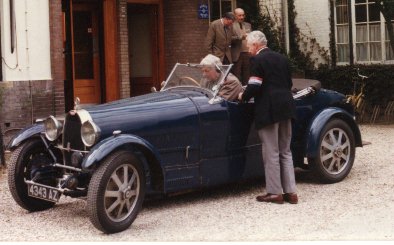

T43 60mm100mm2262cc824-OHC1 S/C120S1927/30
T43A 60mm100mm2262cc824-OHC1 S/C120S1931/32

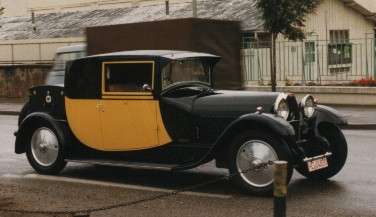

T44 69mm100mm2992cc824-OHC1 N/A100T1927/30REPLACEMENT FOR TYPE 38
T45 60mm66mm2986ccH1632-2OHC2 S/C-X1933EXPERIMENTAL RACING CAR

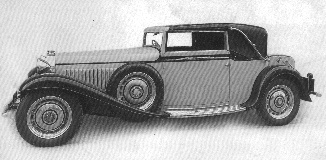

T46 81mm130mm5359cc824-OHC1 N/A140T1929/36
T46S81mm130mm5359cc824-OHC2 S/C160T1930/36
T47 60mm88mm3982ccH1632-2OHC2 S/C--1933EXPERIMENTAL RACING CAR

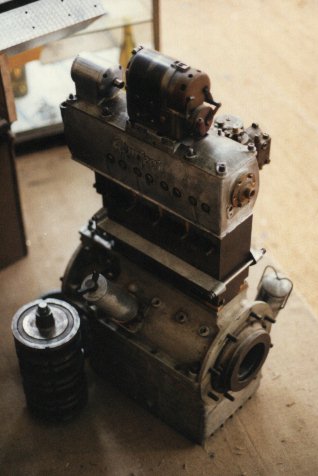

T48 --996cc4-----engine for Peugeot 201X
T49 72mm100mm3257cc824-OHC1 N/A110T1930/34REPLACEMENT FOR TYPE 44. 2 SPARK PLUGS PER CYLINDER

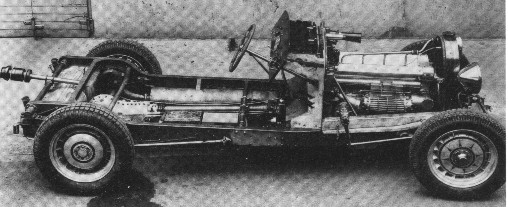

T50 86mm107mm4972cc816-2OHC2 S/C225T1930/34
T59/50B 3l --3000cc816-2OHC--R1935/39
T59/50B 4.5l84mm100mm4435cc816-2OHC--R1935/39
T59/50B 4.7l86mm100mm4648cc816-2OHC--R1935/39
T51 60mm88mm1991cc816-2OHC1 S/C160R1931/35
T51-160mm100mm2262cc816-2OHC1 S/C180R1931/35
T51A60mm66mm1493cc816-2OHC1 S/C130R1931/35
T52 ---------MINITURE ELECTRIC CAR
T53 86mm107mm4972cc816-2OHC1 S/C250R19294 WHEEL DRIVE
T54 86mm107mm4972cc816-2OHC1 S/C~300R1932/34

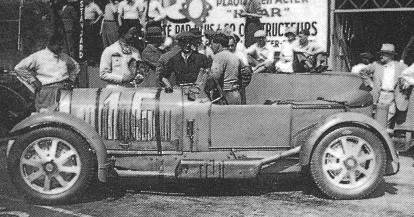

T55 60mm100mm2262cc816-2OHC1 S/C130S1932/35

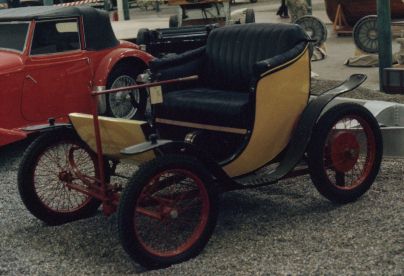

T56 ---------FACTORY ELECTRIC CART

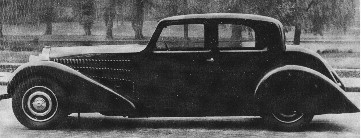

T57 72mm100mm3257cc816-2OHC1 N/A135S1934/40
T57C72mm100mm3257cc816-2OHC1 S/C160S1937/40
T57G 72mm100mm3257cc816-2OHC1 N/A170R1936/37"TANK"

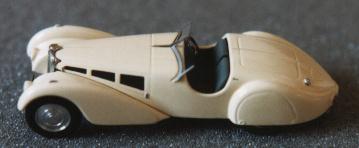

T57S 72mm100mm3257cc816-2OHC1 N/A170S-
T57SC72mm100mm3257cc816-2OHC2 S/C230S-
T58---------Diesel engine (no further info)

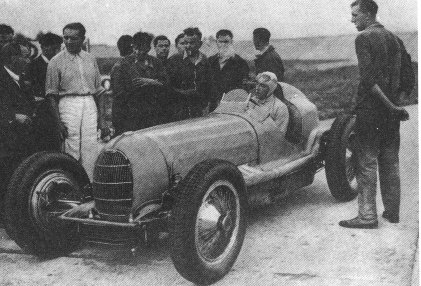

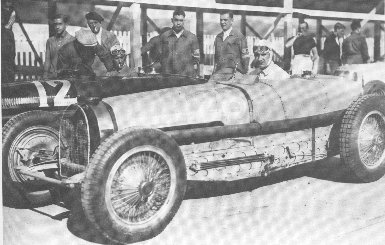

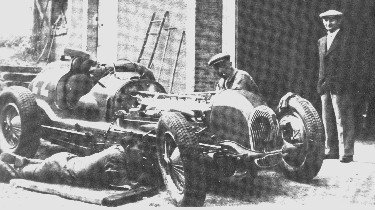

T5972mm88mm2867cc816-2OHC2 S/C200R-
T59A72mm100mm3257cc816-2OHC2 S/C250R1934
T60---8---X1934/36EXPERIMENTAL AERO ENGINE
T61---------Transmission for autorail?
T62---------Transmission for T59??
T63---------

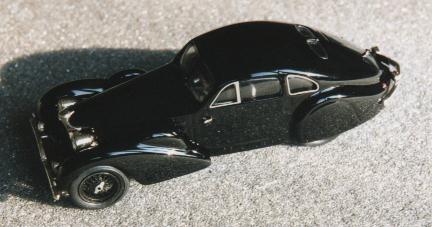

T64 84mm100mm4435cc816-2OHC--T1939
T65---------
T66-------X1939TRANSMISSION FOR 100P/110P AEROPLANE
T67---V16---X1939EXPERIMENTAL AERO ENGINE
T68 --350cc42OHCS/C-T1940/45
T68B--350cc42OHCN/A-T1947
T69---------
T70--18.5 l8-----4 engine project.
T71---------63 Litre STRAIGHT MARINE ENGINE ?
T72--10.5cc12 STS/C-X1943SCOOTER ENGINE
T73 76mm82mm1489cc48-2OHCN/A-T1947
T73AC76mm82mm1489cc48-2OHCS/C-T1947
T73C 76mm82mm1489cc48-2OHC--R1944
T74---------Steam engine
T75---------Marine engine for You-you
T76---------Truck-engine
T77---------Transmission for marine engine
T78---------8 cyl. 80x106 engine project for touring car
T80---------Transmission for 12 cylinder Licorne marine engine

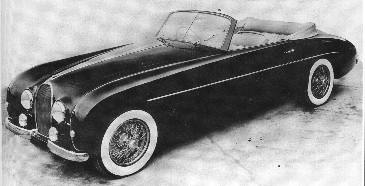

T10172mm100mm3257cc816-2OHC1 N/A135T1951
T101C72mm100mm3257cc816-2OHC1 S/C190T1951
T10272mm100mm1629cc48-2OHC1 N/A~75X1952
T125 75mm? 68.8mm ?1216cc? 48-2OHC?No~75S1955
T251 75mm 68.8mm2432cc8---R1953/56
T252-------S1956
T272---------
T451---V12---X1959/63
