Editor: Jaap Horst
The photographs and especially the FACT SHEET (Do not forget to click here or download (Tiff format) and print! You want to know what the bore and stroke were for the T72A??) were sent to me quite a while ago, but consequently I lost them, only to find them again recently.

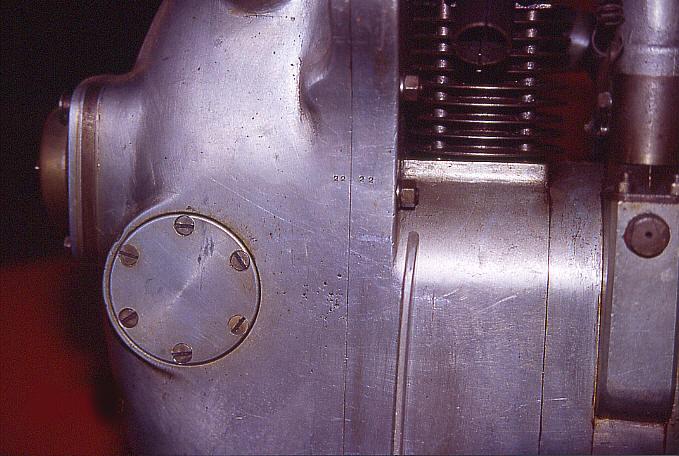

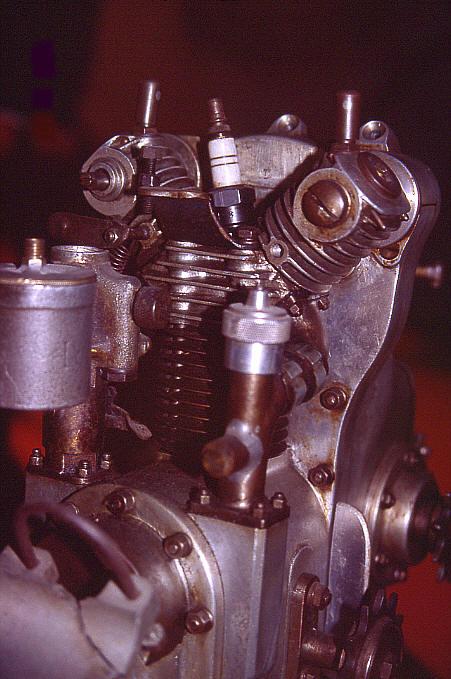

As known, the engine is about 10.5cc, one cylinder, 2 overhead cams and a compressor.

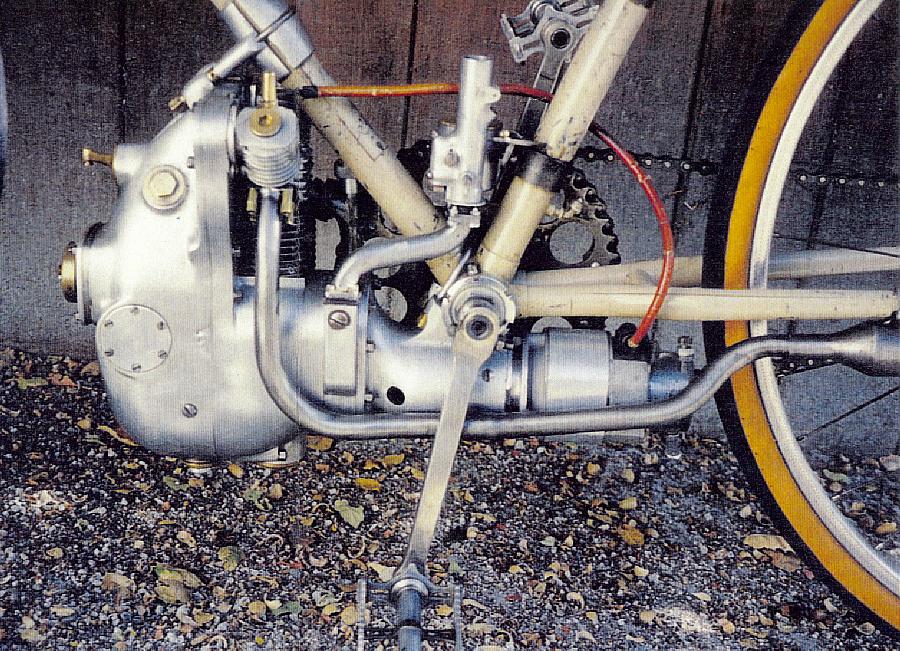

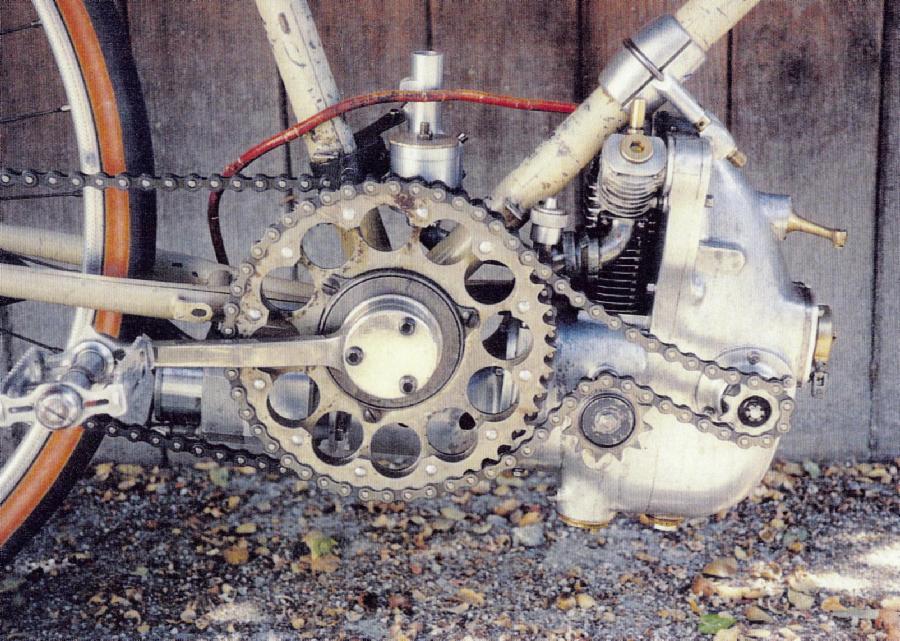

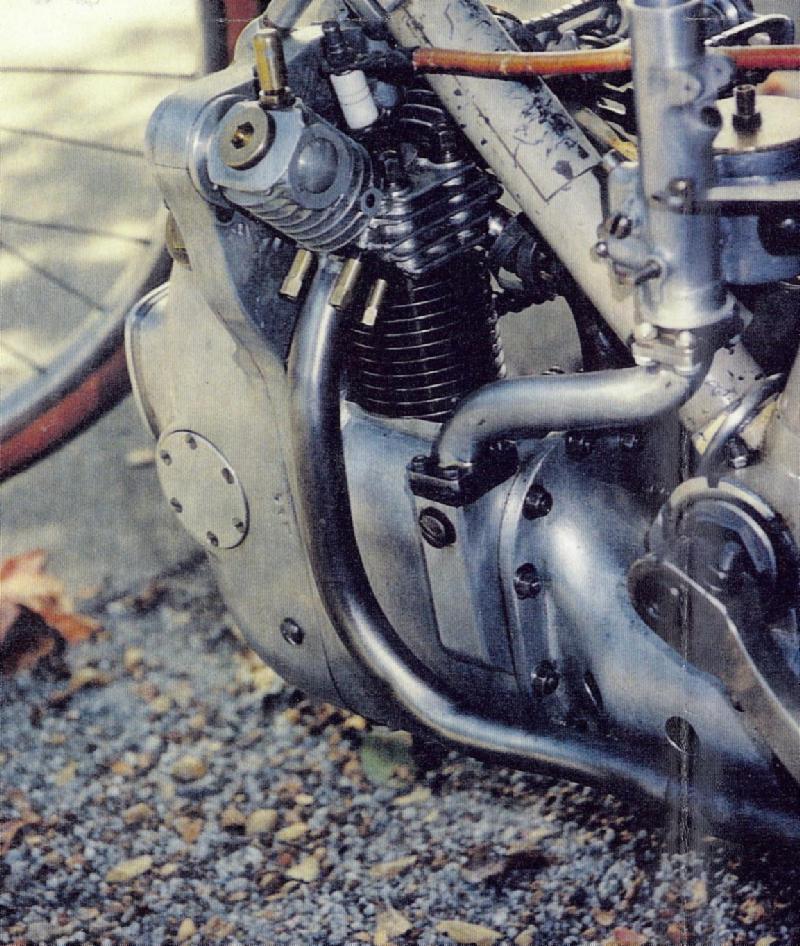

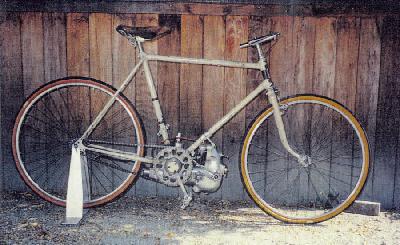

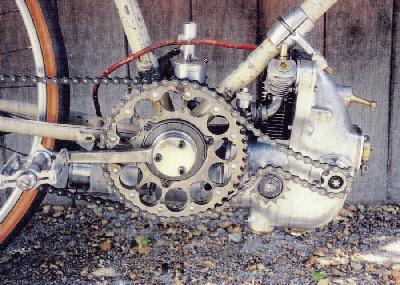

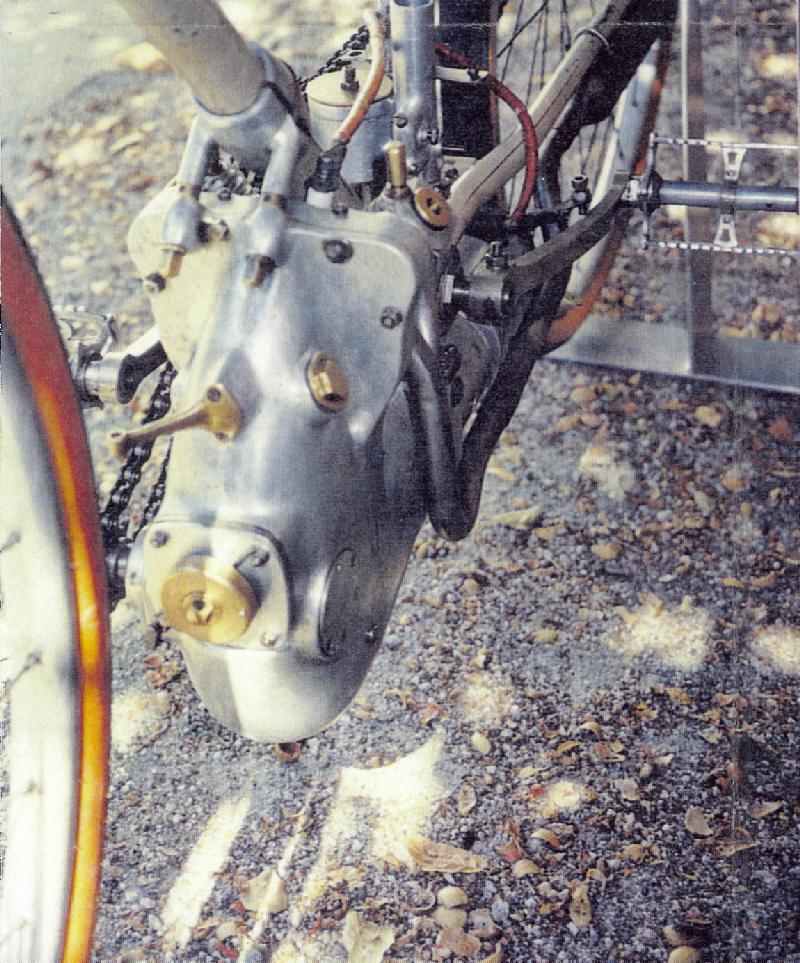

The bike is a 1937 Peugeot, documented by the Peugeot Museum. The T72 is not in running order, but it certainly has been driven, by Ettore himself.
The above pictures should have been added to an article about the Bugatti bicycles and the T72 that I published 5 years ago. For comparison of both T72 engines I publish it here again!
Volume 7, Issue 3

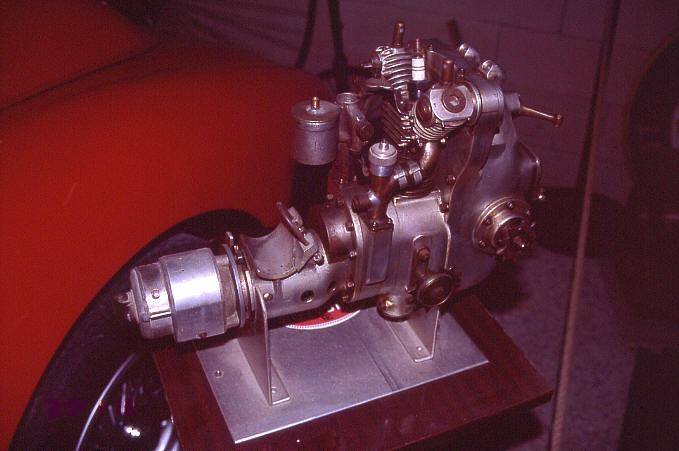

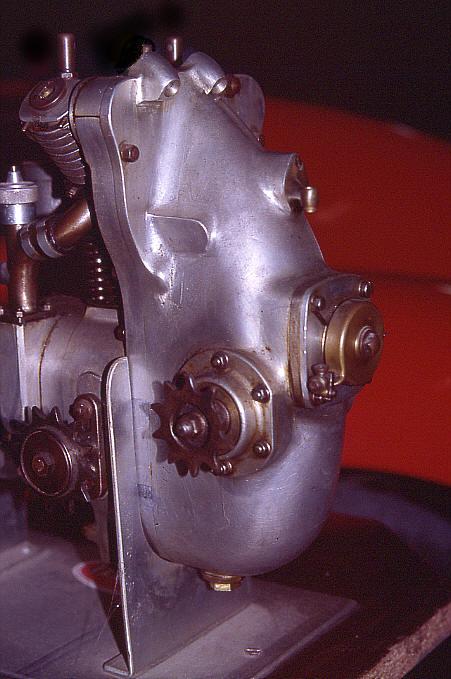

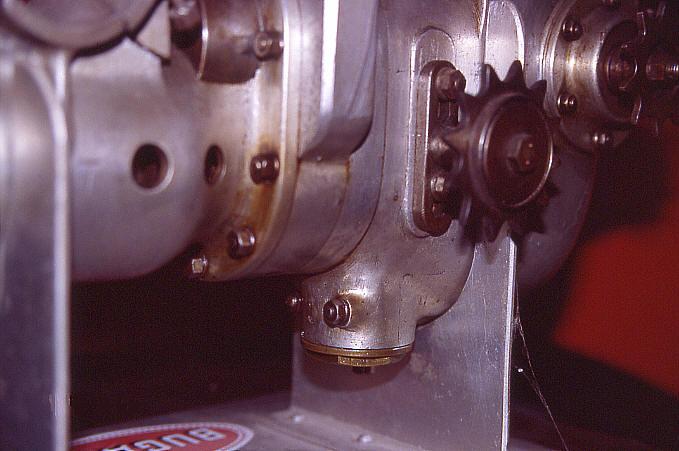

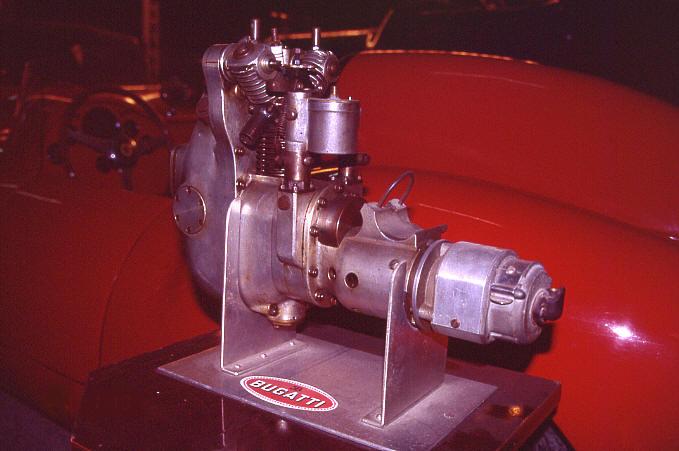

Not much has been written about Ettore´s bicycle, and either much on the T72, his bicycle engine. In this article we don´t intend to say everything about this issue either, we´ll just show some pictures! Both the (old) bicycle as well as the T72 engine are in the collection of a French collector, who wishes to remain anonymous. The pictures were provided by (and are copyright of) Patrick Arnaud. Thanks to him for providing these!

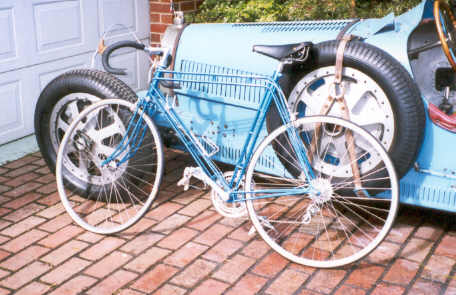

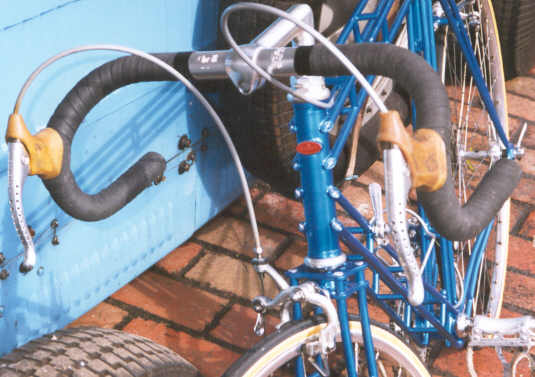

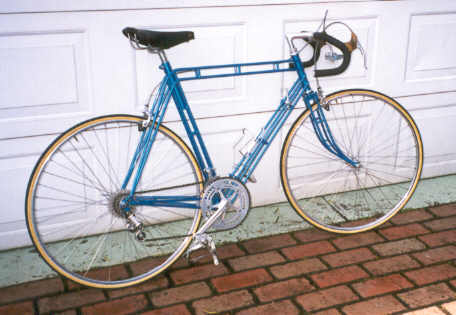

Above an old example of Ettore´s bicycle, design from 1913. Doubtfull however is, if this really is an original from that date, or a replica from the 1950´s (it seems to me that the parts used indicate mostly the later date. We know for sure however, that the bicycle shown below is a recent replica, built from 1913 drawings and details from the Bugatti Trust. Only three are known.
It is shown here to make clear the basics of Ettore´s design, where basically the usually used tubes are replaced by 4 small diameter tubes placed in a square, and connected by spacers.
